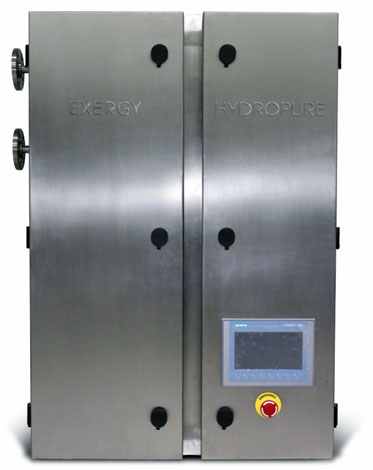

PUREX CUSTOM
PURES CUSTOM is a designed to meet the client's specific requirement. Most features and options can be customized.
This model can dispense the WFI at varies temperature and flow rates. Its operation is PLC controlled fully automatic and can communicate with other PLCs or SCADA.
OPTIONAL FEATURES
- Multiple dispensing flow rates
- Multiple dispensing temperatures
- Dump to drain during cooling mode
- Zero Dead leg isolation valves at header
- NEMA 4X compliant cabinet
- ASME BPE compliant
- CE & UL certification is optional
- Integrated operation with downstream equipment
| PRODUCT INFORMATION | |
|---|---|
| MODEL NO | STCC |
| CAPACITY | 100-6000 LPH(0.5 TO 25 GPM) OR HIGHER |
| APPLICATION | Cooling or Heating |
| DISPENSING MODE | Hot dispense & Cold Dispense |
| OPERATION | Fully Automatic & Manual through HMI |
| CONTROL OPTIONS |
|
| COMMUNICATION OPTIONS |
|
CONTROL OPTIONS
Fully Automatic Stand Alone System
This is a stand alone unit which works independently without any communication with other systems
Remote Start/Stop Operation
This is an additional feature to stand alone system, using this feature, the user can start/stop The POU remotely. This is useful when POU unit is not accessible to the user, i.e. either it is installed at higher elevation or other room. Remote START/STOP operation can be done by following options:

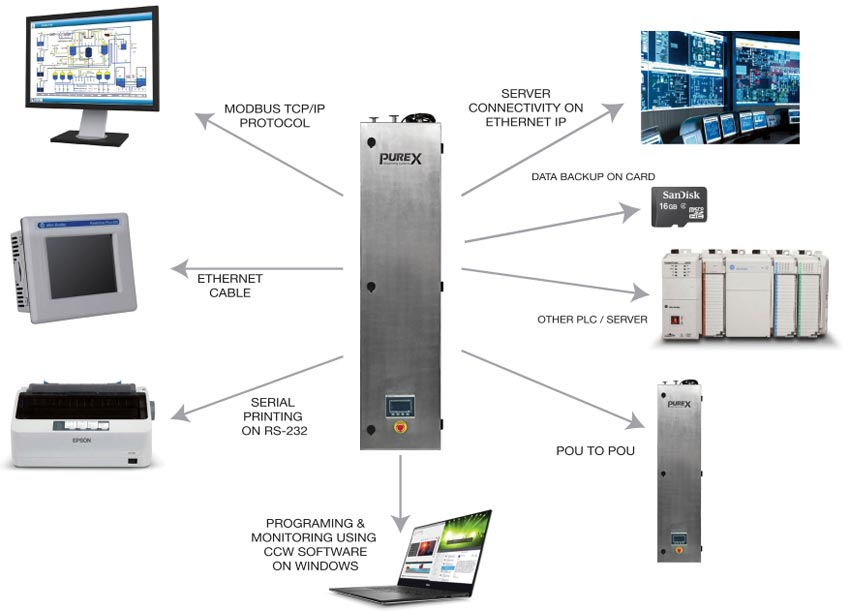

COMMUNICATION OPTIONS

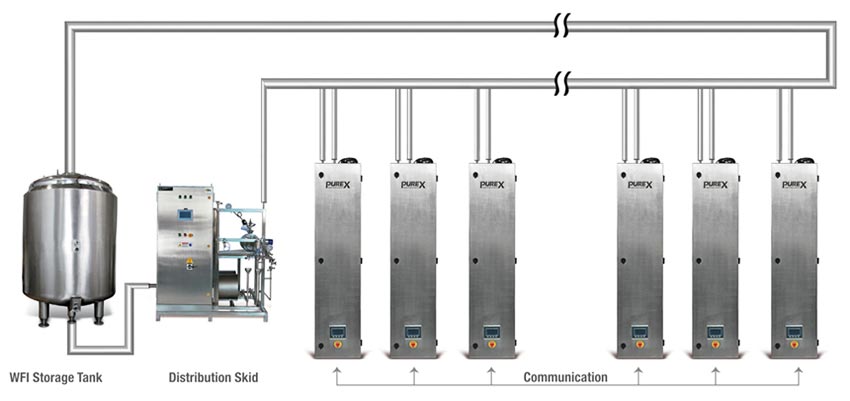

POU to POU COMMUNICATION
When there are multiple POUs installed in series in loop, the simultaneous operation of POUs has to be controlled to ensure the minimum required loop velocity as per Pharma guidelines. This is achieved by the POU to POU communication feature in which all POUs communicate with each other using Ethernet protocol and the user can limit maximum number of POUs in operation to ensure the loop velocity is maintained.
